Battery life |
Typical 200 Cycles (Splice & Heat) / single battery (2 Batteries Standard) |
Cladding diameter |
40mm, 60mm, SOC - 3.0, SOC - 0.9 |
Power supply |
AC 100-240V input or DC 9-14V |

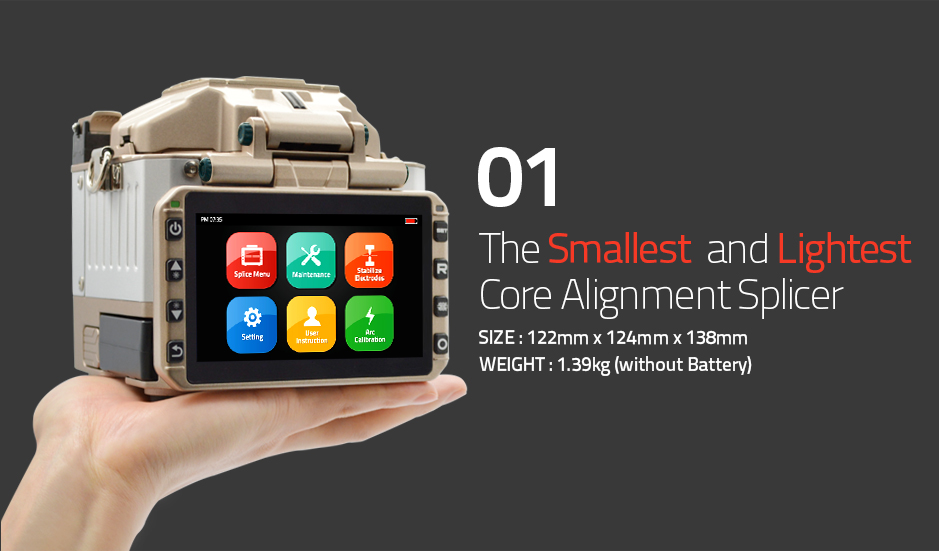

Size |
122mm X 124mm X 138mm |
Weight |
1.39Kg (without battery) |
Splicing Method |
Core Alignment DWACAS (Digital Wavelength Automatic Core Alignment System) |
Splice Time |
12s average SM / SM 7s Quick mode |
Return Loss |
>60 dB |

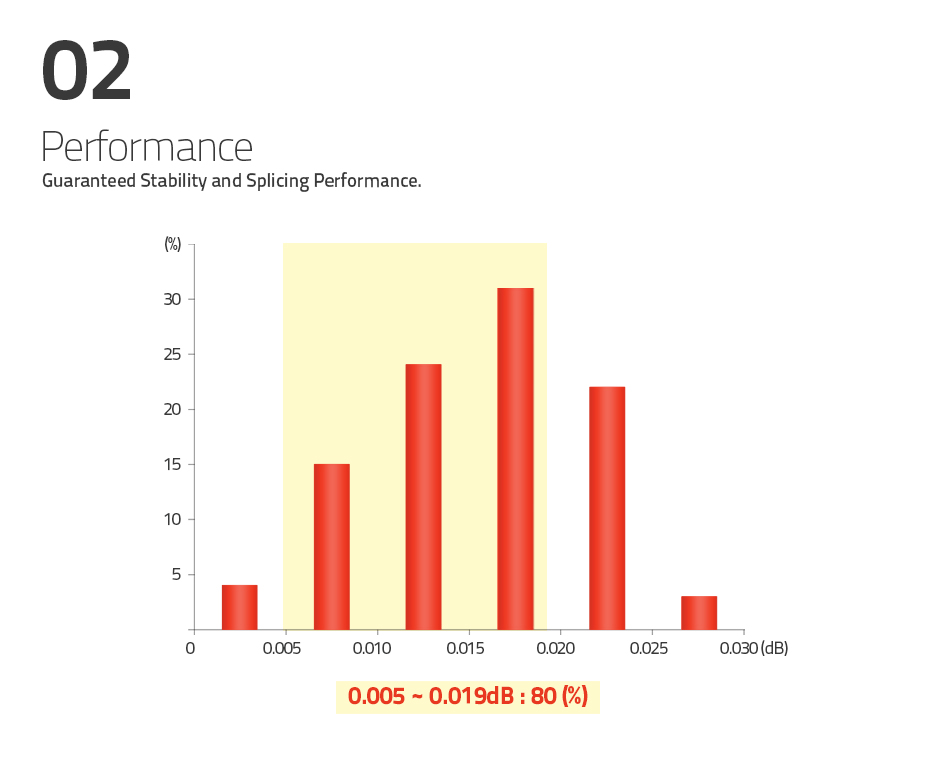

Average Loss |
SM(0.02dB) / mm(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB) |
Applicable Fibre |
SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NTZDS(ITU-T G.655), IT-G657A, IT-G657B |
Coating Diameter |
100-1000um |
Heating Programs |
Factory installed mode: 11, User installable mode: 23 |
Heating Time |
Typical 18s |

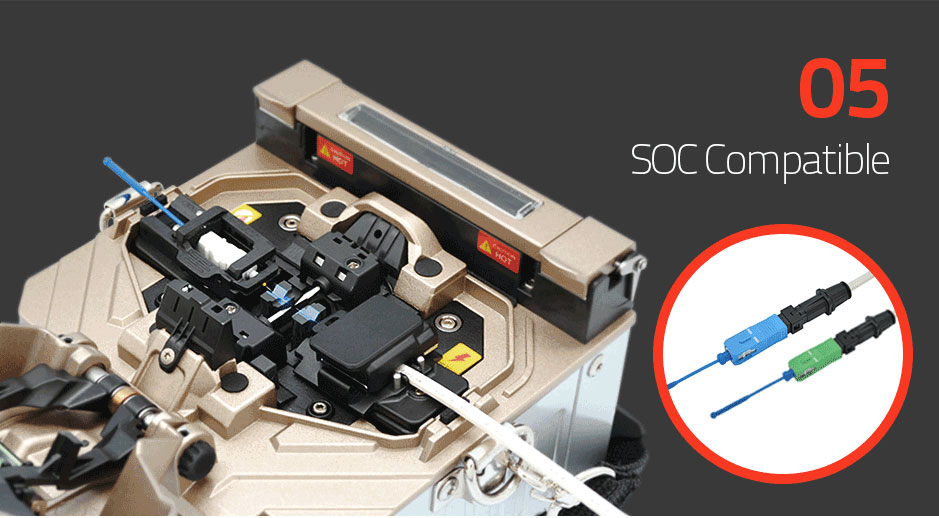

Protection Sleeve |
40mm, 60mm, SOC Connector |
Data Output |
Micro HDMI-USB master device |
Splice Programs |
Factory installed mode: 33, User installable mode: 70+ |
Splice Memory |
Up to 2000 records and 2000 splice images |
Monitor |
Colour 4.3” LCD monitor, with Touch Screen (Tempered Glass) |
Cameras |
2 CCD camera system |
Magnification |
XY: 150 times, X/Y: 300 power |
Wind Protection |
The max wind speed 15m/s |
Storage Condition |
Tempreture -40 to 80⁰C, 0-95% relative humidity, battery -20-30⁰C |
Pull Test |
1.96-2.25N (standard) |
