DSX-600 CableAnalyser

Essential certification of copper, twisted pair structured cabling from Cat 3 / Class C through Cat 6A / Class EA

More details

£175.00£210.00 Inc VAT.

How it works

  1. Click the Create an Account button below to register your details with Rent-a-Tester.
  2. Once we've checked your details we'll approve your online account.*
  3. Start hiring testers!
  4. *Account approval is normally done the same day but can take up to 48 hours.
Create an Account

Already registered? Click here to log in.

  • More Info

  • Details

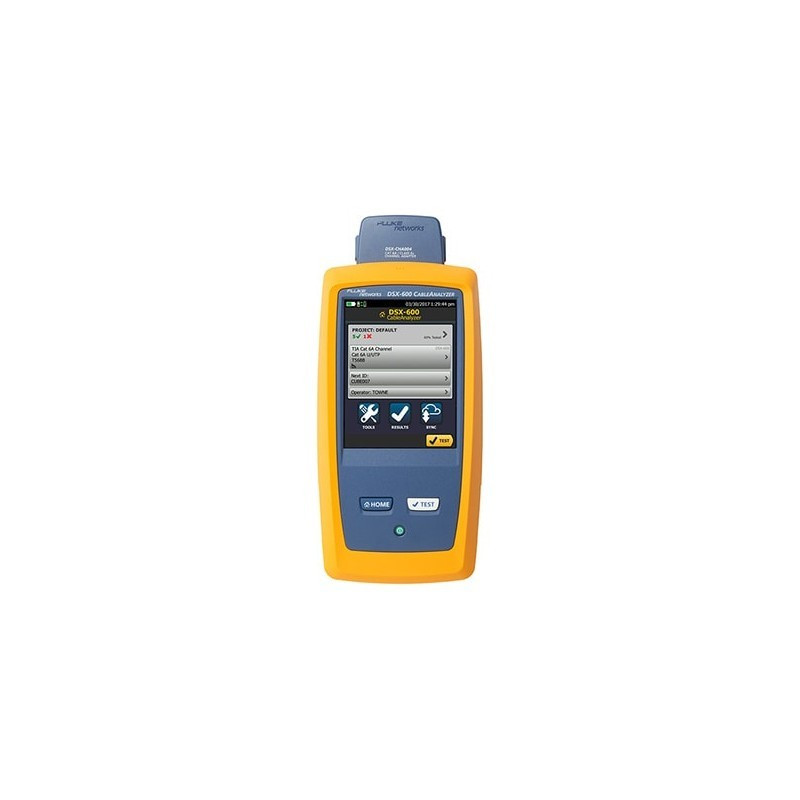

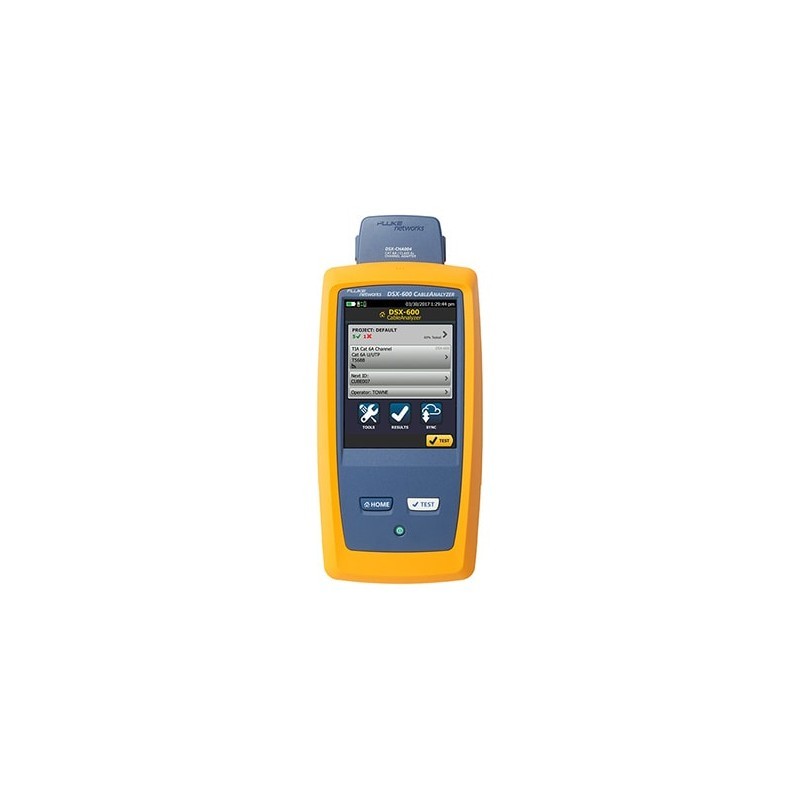

The DSX-600 CableAnalyzer™ is the tool for essential certification of copper, twisted pair structured cabling from Cat 3 / Class C through Cat 6A / Class EA features speed, and reliability that makes you more efficient and productive – you can see the results on the bottom line. No other tester will deliver as consistently as the DSX-600. Its gesture-based user interface allows your techs to spend less time interpreting screens and more time testing. 500 MHz frequency range certifies Cat 6A/Class EA cabling for 10 Gigabit Ethernet in just 10 seconds. Advanced diagnostics pinpoint the location of a failure. LinkWare™ Live cloud-based service that lets you manage certification jobs anytime, anywhere, with anyone on any device.

  • Cat 6A and Class EA Copper Certification
  • Includes Channel Measurement Adapters; Optional rugged Permanent Link Adapters with removable test plug available
  • 10 second Cat 6A test time
  • ProjX™ Management System makes test setup fast and foolproof
  • HDTDX and HDTDR diagnostics pinpoint fault location
  • Integrates with LinkWare™ Live to manage jobs and testers from any smart device.
  • Quickly and easily create professional custom PDF reports with LinkWare™ PC.

Unique Features
  • The DSX-600 enables users to accomplish more than ever before by accelerating every step of the testing process
  • LinkWare Live cloud service lets the Project Manager remotely set up the testers, monitor job progress and even location from any smart device
  • ProjX™ management system eases tasks from initial set-up of a job to system acceptance. It eliminates redundant steps, and ensures that all tests are completed correctly the first time, and every time
  • Taptive™ user interface puts advanced data analysis and easy set-up and operation at the fingertips of technicians of all skill levels
  • LinkWare PC management software provides unmatched analysis of test results and professional test reports

Standards
  • TIA - Category 3, 5, 5e, 6, 6A per TIA 568-C.2 or TIA-1005
  • ISO/IEC - Class C and D, E, EA certification per ISO/IEC 11801:2002 and amendments
  • IEEE 802.3 - 10BASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-T

Performance
  • Nine second Cat 6/Class E and 10 second Cat 6A/Class EA test time contributes to the fastest way to gain certification
  • Graphically displays the source of failures, the DSX-600 HDTDR and HDTDX algorithms provide quick, easy-to-understand directions to identify the point of failure (distance from the tester).
  • Manage up to 12,000 Cat 6A test results with full graphics
  • Capacitive touchscreen allows quick tester setup with easily selectable cable types, standards and testing parameters

ProjX Management System Manages Complex Jobs with Ease

Manage up to 12,000 Cat 6A test results with full graphics

Managing the testing of multiple jobs with multiple teams, testers, and requirements is time consuming and a source of errors. Increasingly larger jobs make project organization more important than ever. The new ProjX management system on the DSX-600 CableAnalyzer provides individual project files for all job specific details to be saved under a simple name, eliminating the need to re-enter job specific details after starting a project. This minimizes set-up errors or lost files when switching from one job to another or utilizing multiple testers on a single job. In addition, it provides test results by cable ID, merges any changes without duplicates and defaults to the last copper or fiber module installed. ProjX management system provides real time status to completion on each job with a 0-100% scale and gives the operator the option to isolate any test requiring a second look and helps to assure nothing is overlooked. The "Fix Later" selection creates a punch list or automatic to do list for correcting any workmanship issues. ProjX enables project managers and crew leaders to be truly efficient.


Performs with Unsurpassed Speed

Ten second Cat 6A test time and the fastest way to submit your certification results

No tester offers so much speed for so many tests. Complete copper certification to Cat 6A in 10 seconds . Quickly get a Pass or Fail result and easily review individual test parameters by value or drill into specific area on a graph.

LinkWire PC Cable Test Management Software

Leveraging the popular and multi-featured LinkWare PC management software application, DSX-600 users can easily access the ProjX management system data, generate reports, and upgrade the software in their testers. Project Managers have full capabilities to manage workflow and consolidate test results. Users can provide the finishing touch by adding their company logo to the report and offer it unaltered to their customers for system acceptance purposes. Keep your business tools simple, no matter which Fluke Networks copper or fiber tester you are using, LinkWare PC is the software package that reports it all.

Now with LinkWare PC stats, the new automated statistical report option, you can move above and beyond the page-per-link report and see your entire cabling infrastructure. It analyzes and transforms LinkWare PC test results data into charts and diagrams that reveal your cabling plant performance; this report summarizes your entire cabling infrastructure in a compact, graphical format that makes it easy to verify margins and to spot anomalies.


LinkWare™ Live Test Results Management Service

LinkWare Live is a cloud-based service that lets you manage certification jobs anytime, anywhere, with anyone on any device.  With LinkWare Live, you can:

  • Keep track of every test on every job. Get an overview of every project from any smart device. Drill down to each individual test. Instantly receive notification of incorrect test setting or cable IDs.
  • Get it right the first time. Define cable IDs and test settings from your PC or tablet.
  • Keep your testers up to date. Standards can change without notice, and an out-of-date test report can mean hours of re-testing. LinkWare Live automatically ensures your testers are running the latest.
  • Stop wasting time and gas driving testers back to the office. Upload your test results straight from the job site to LinkWare Live over Wi-Fi. Then download them automatically to the right job for fast report generation with LinkWare PC.
  • Avoid Project Delays. Track the last used location and monitor the status of all testers to ensure they are always calibrated and running the latest firmware
Altitude13,123 ft (4,000 m) 10,500 ft (3,200 m) with ac adapter
Battery life8 hours
Display5.7 in LCD display with a projected capacitance touchscreen
SafetyCSA 22.2 No. 61010, IEC 61010-1 3rd Edition
Shock1 m drop test with and without module and adapter attached
Weight3 lbs (1.36 kg)
DimensionsMain Unit and Smart Remote: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
VibrationRandom, 2 g, 5 Hz -500 Hz
EMCEN 61326-1: Portable
Shielded and unshielded pair LAN cablingTIA Category 3, 4, 5, 5e, 6, 6A: 100 Ω, ISO/IEC Class C, D, E, EA: 100 Ω and 120 Ω
Permanent link adaptersPlug type: shielded RJ45 (for DSX-600-PRO only)
TIACategory 3, 5, 5e, 6, 6A per TIA 568-C.2 or TIA-1005
ISO/IECClass C and D, E, EA certification per ISO/IEC 11801:2002 and amendments
Maximum frequency500 MHz
Speed of AutotestFull 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds; Full 2-way Autotest of Category 6A/Class EA: 10 seconds
Operating Temperature32° F to 113° F (0° C to 45° C)
Storage Temperature-22° F to +140° F (-30° C to +60° C)
BatteryLithium ion battery pack, 7.2 V
Operating relative humidity (% RH without condensation)0% to 90%, 32° F to 95° F: (0° C to 35° C), 0% to 70%, 95° F to 113° F: (35° C to 45° C)
Supported test parameters (test standard determines parameters and frequency range reported)Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), Near End Crosstalk (NEXT), Attenuation-to-Crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (PS ELFEXT), Power Sum NEXT, Power S...
Test Result Storage12,000 Cat 6A with plots
Battery Charge Time4 hours (below 40° C, with tester off)
