The Mini 6S with its excellent portability and reliability gives customers unprecedented convenience under any environmental conditions. It’s faster splicing and heating time provide higher efficiency and greater satisfaction to customers.
 |
|
 |
|
 |
|
 |
1MINI 6S Splicer |
| 2MINI 50G Cleaver | |
| 3Cleaver Softcase | |
| 4Cooling Tray | |
| 5Spare Electrode | |
| 6Connector Heater Block | |
| 7Connector Holder | |
| 8Operation Manual CD | |
| 9Car Cigar Jack | |
| 102 Battery Packs | |
| 11Shoulder Strap | |
| 12Power Cord | |
| 13AC Adapter | |
| 14USB Cable | |
| 15Hand Carrying Case |
| Battery life | Typical 200 Cycles (Splice & Heat) / single battery (2 Batteries Standard) |
| Cladding diameter | 40mm, 60mm, SOC - 3.0, SOC - 0.9 |
| Power supply | AC 100-240V input or DC 9-14V |
| Size | 122mm X 124mm X 138mm |
| Weight | 1.39Kg (without battery) |
| Splicing Method | Core Alignment DWACAS (Digital Wavelength Automatic Core Alignment System) |
| Splice Time | 12s average SM / SM 7s Quick mode |
| Return Loss | >60 dB |
| Average Loss | SM(0.02dB) / mm(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB) |
| Applicable Fibre | SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NTZDS(ITU-T G.655), IT-G657A, IT-G657B |
| Coating Diameter | 100-1000um |
| Heating Programs | Factory installed mode: 11, User installable mode: 23 |
| Heating Time | Typical 18s |
| Protection Sleeve | 40mm, 60mm, SOC Connector |
| Data Output | Micro HDMI-USB master device |
| Splice Programs | Factory installed mode: 33, User installable mode: 70+ |
| Splice Memory | Up to 2000 records and 2000 splice images |
| Monitor | Colour 4.3” LCD monitor, with Touch Screen (Tempered Glass) |
| Cameras | 2 CCD camera system |
| Magnification | XY: 150 times, X/Y: 300 power |
| Wind Protection | The max wind speed 15m/s |
| Storage Condition | Tempreture -40 to 80⁰C, 0-95% relative humidity, battery -20-30⁰C |
| Pull Test | 1.96-2.25N (standard) |

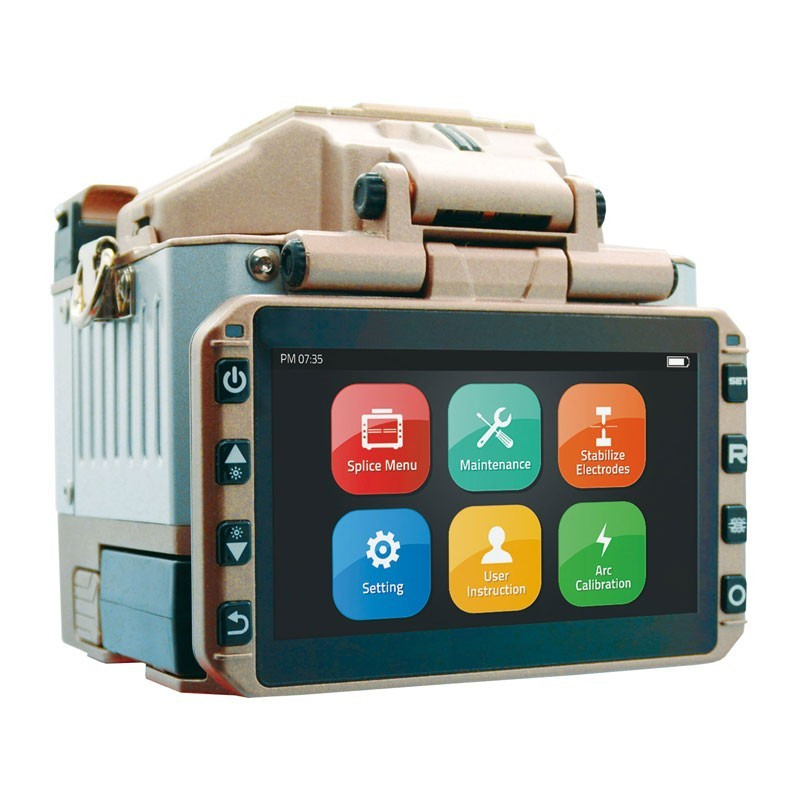

Fiberfox Mini 6S Fusion Splicer Kit
The smallest core allignment splicer
£180.00
£150.00 Ex. VAT
The smallest core allignment splicer
