Fluke DSX-5000
  • Fluke DSX-5000
The DSX CableAnalyzer Series copper test solution enables testing and certification of twisted pair cabling for up to 40 Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you’ll be. Unfortunately, there are a lot of things that slow the process down – setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers cannot understand.

As part of the Versiv cabling certification product family, the DSX CableAnalyzer Series provides accurate, error-free certification. In the installation business there are multiple teams, varying media types and multiple testing requirements. The difference between being profitable or not is just a few percentage points. The DSX certifies copper cabling, complies with all standards including Level VI/2G accuracy, making jobs easier to manage, and getting to system acceptance faster. It’s not just for the expert technicians and Project Managers. Individuals of various skill levels can improve the set-up, operation, test reporting, and simultaneously manage diverse projects.

Unique features:

  • Versiv enables users to accomplish more than ever with a cable tester, by accelerating every step of the testing process
  • LinkWare Live cloud service lets the Project Manager remotely set up the testers, monitor job progress and even locate tester from any smart device
  • ProjX™ management system eases tasks from initial set-up of a job to system acceptance. It eliminates redundant steps, and ensures that all tests are completed correctly the first time, and every time
  • Taptive™ user interface puts advanced data analysis and easy set-up and operation at the fingertips of technicians of all skill levels
  • LinkWare PC management software provides unmatched analysis of test results and professional test reports
  • The DSX reduces the time required to fix cabling faults with dedicated diagnostics, a simple test that locates the problem

Performance:

  • Eight second Cat 6A test time contributes to the fastest way to gain certification
  • Graphically displays the source of failures including crosstalk and distance to shield faults for faster troubleshooting
  • Manage up to 12,000 Cat 6A test results with full graphics
  • Capacitive touchscreen allows quick tester setup with easily selectable cable types, standards and testing parameters
  • Over 1 billion links reported on LinkWare PC management software

Standards:

  • Compliant with ANSI/TIA-1152-A Level 2G and proposed standard IEC 61935-1 Ed. 5 Level VI field tester accuracy requirements to 2000 MHz
  • Supports the complete suite of Resistance Unbalance standards needed for Power over Ethernet (PoE) – IEEE 802.3bt, ANSI/TIA/EIA-568, ISO/IEC 11801 series documents
  • TCL and ELTCTL measurements compliant to IEC 61935-1-1 (Draft)
  • Screen continuity along path of cabling
Display 5.7 in LCD display with a projected capacitance touchscreen
Operating altitude 13,123 ft (4,000 m), 10,500 ft (3,200 m) with ac adapter
Safety CSA 22.2 No. 61010, IEC 61010-1 3rd Edition
Shock 1 m drop test with and without module and adapter
Weight Main Versiv unit with DSX module and battery installed: 3 lbs, 5oz (1.28 kg)
Dimensions Main Versiv unit with DSX module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Vibration Random, 2 g, 5 Hz-500 Hz
EMC EN 61326-1
Shielded and unshielded pair LAN cabling TIA Category 3, 4, 5, 5e, 6, 6A: 100 Ω, ISO/IEC Class C, D, E, EA: 100 Ω and 120 Ω
Permanent link adapters Plug type: shielded RJ45. Optional Plug type: Tera
Channel Adapters Jack type: shielded RJ45. Optional Jack type: Tera
TIA Category 3, 4, 5, 5e, 6, 6A, per TIA 568-C.2
ISO/IEC Class C and D, E, EA, F, FA and I/II certification per ISO/IEC 11801:2002 and amendments
Maximum frequency 1000 MHz
Speed of Autotest Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds. Full 2-way Autotest of Category 6A/Class EA: 10 seconds
Supported test parameters Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-to-crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alie...
Input protection Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage
Case High impact plastic with shock absorbing overmold
Main unit and remote Lithium ion battery pack, 7.2 V
Typical battery life 8 hours
Charge time Tester off: 4 hours to charge from 10 % capacity to 90 % capacity.
Languages supported English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Trad Chinese, Czech, Polish, Swedish, Hungarian
Calibration Service center calibration period is 1 year
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -22°F to +140°F (-30°C to +60°C)
Operating relative humidity 0 % to 90 %, 32°F to 95 °F (0°C to 35°C), 0 % to 70 %, 95°F to 113 °F (35°C to 45°C)
Length of Twisted Pair Cabling 800 m (2600 ft) Without Remote, 150 m (490 ft) With Remote
Propagation Delay 4000 ns Without Remote, 750 ns With Remote
Category 6A/Class EA test modes (or lower link categories) Exceed Level IIIe requirements of TIA 1152 and Level IV of IEC 61935-1
Class FA test modes Exceed Level V requirements as in the draft 4th edition of IEC 61935-1

Specific References

EAN13
0075408210481

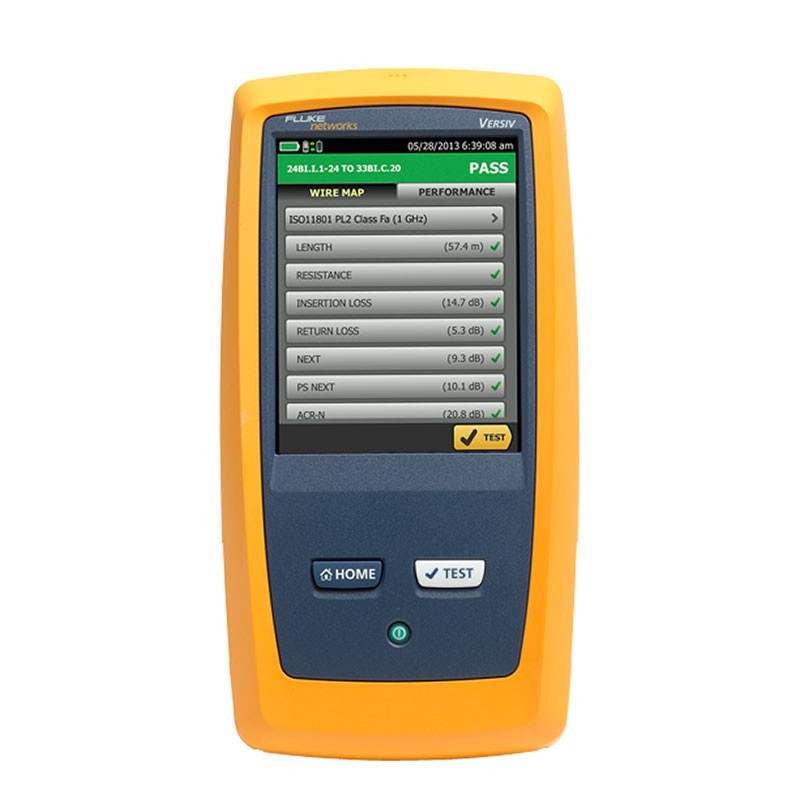

Fluke DSX-5000

1 GHz DSX-5000 CableAnalyzer: Versiv Main & Remote + DSX Copper  (2) modules
£234.00
£195.00 Ex. VAT
Reference: 00A-600-001-15
